SC-5 6.35mm Rotary File Tungsten Carbide Cutting Burr Tools

Code: SC
Material: Tungsten Carbide
Usage: Suitable for ferrous and non ferrous metals, aluminium, soft steel and also for all non-metal materials such as plastics and wood.
Hardness: HRC50-60/HRA92.5
Application: Surface milling, Contouring
Advantage: Durable,high hardness and impact toughness,efficient, long lasting.
Certification: ISO9001:2015
Customized support: OEM/ODM
Place Of Origin: Zhuzhou,Hunan,China
Request For Quotation
  • Description
  • Advantages
  • Shipping

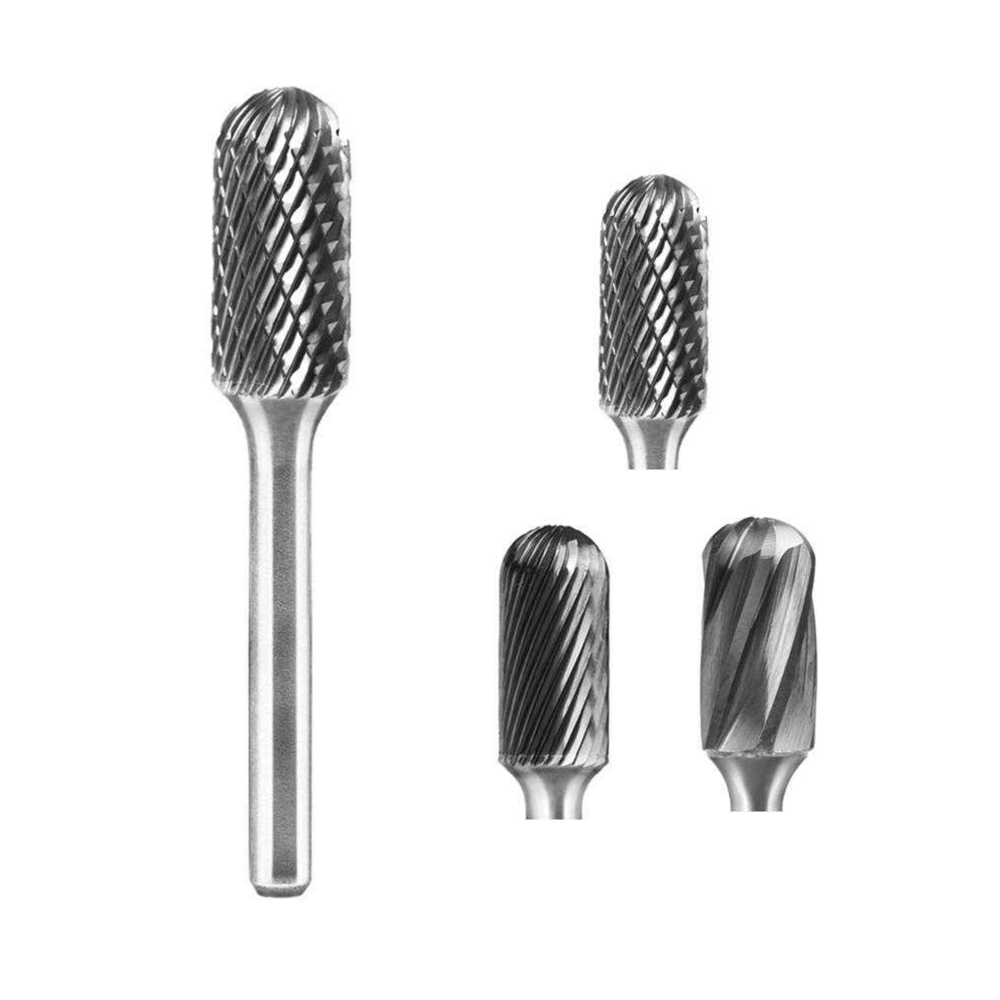

SC-5 Tungsten Carbide Burr Cylinder Shape with Radius End Double Cut Rotary Burr File


About this item

  • 【Shape】 Double Cut Cylinder Shape with Radius End SC

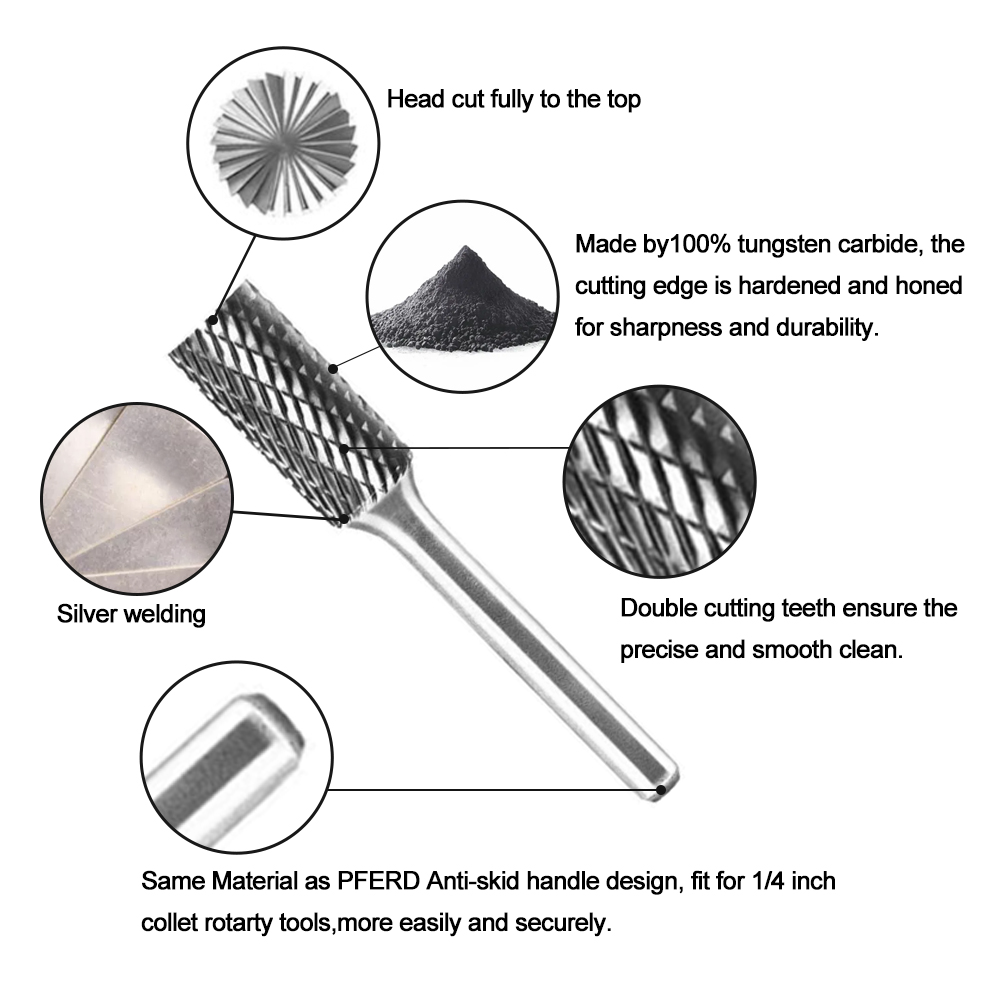

  • 【Durable】 Made of heat-treated tungsten carbide YG8 that lasts 10 times working life than HSS , suitable for machining various kinds of metal material including ≤HRC65 hardened steel.

  • 【Multifunction】 Widely used for metalwork, tool making, engineering, model engineering, wood carving, jewellery making, welding, chamferring, casting, deburring, grinding, cylinder head porting and sculpting.

  • 【Target】 This is an essential bit for metalworker & DIY carving fans, easy to grasp and use, safe and reliable.

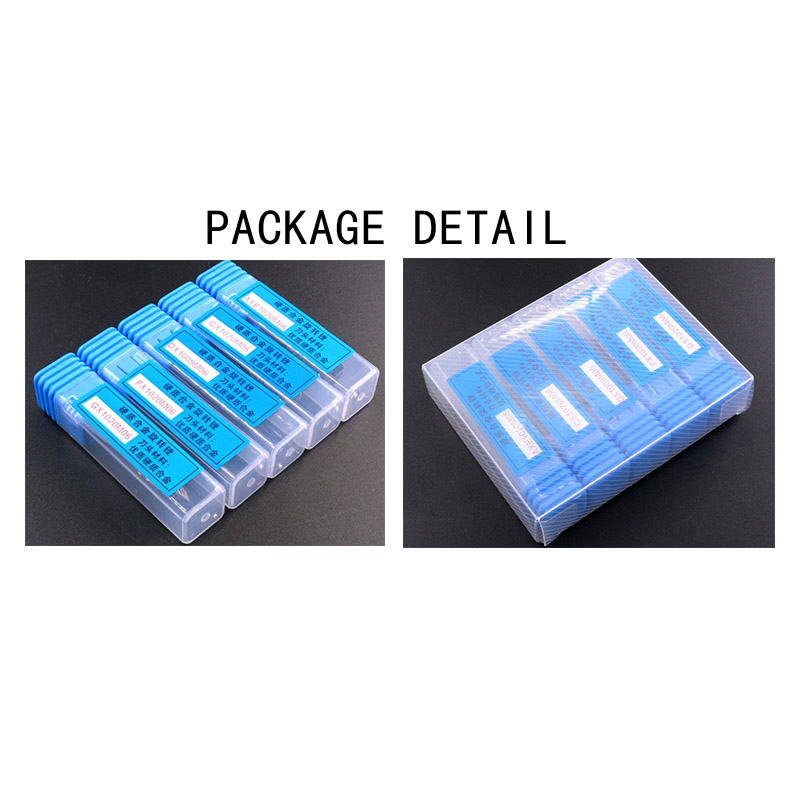

  • 【Packaging】 Packed with a transparent plastic tube for safety storage and protection.





ModelCutter  Dia(mm)Cutter Length(mm)Shank DiaShank Length
SC-516.35 12.70 1/41-3/4
SC-16.35 15.88 1/41-3/4
SC-27.93 19.05 1/41-3/4
SC-39.52 19.05 1/41-3/4
SC-411.11 25.40 1/41-3/4
SC-512.70 25.40 1/41-3/4
SC-615.87 25.40 1/41-3/4
SC-719.05 25.40 1/41-3/4
SC-822.22 25.40 1/41-3/4
SC-925.40 25.40 1/41-3/4

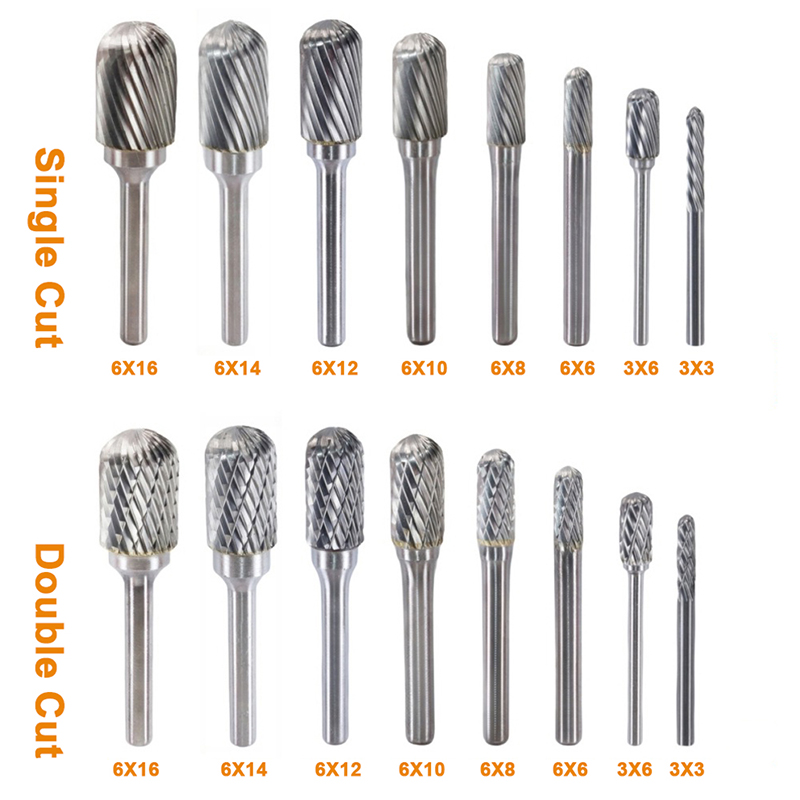

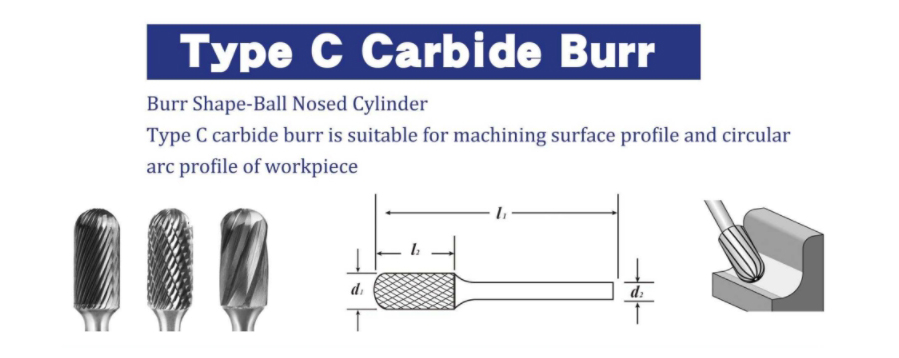

Item No.Cutting Dia Cutting LengthShank DiaOverall
C0616M066mm16mm6mm61mm
C0820M068mm20mm6mm65mm
C1020M0610mm20mm6mm65mm
C1225M0612mm25mm6mm70mm
C1425M0614mm25mm6mm70mm
C1625M0616mm25mm6mm70mm
C1825M0618mm25mm6mm70mm
C2025M0620mm25mm6mm70mm

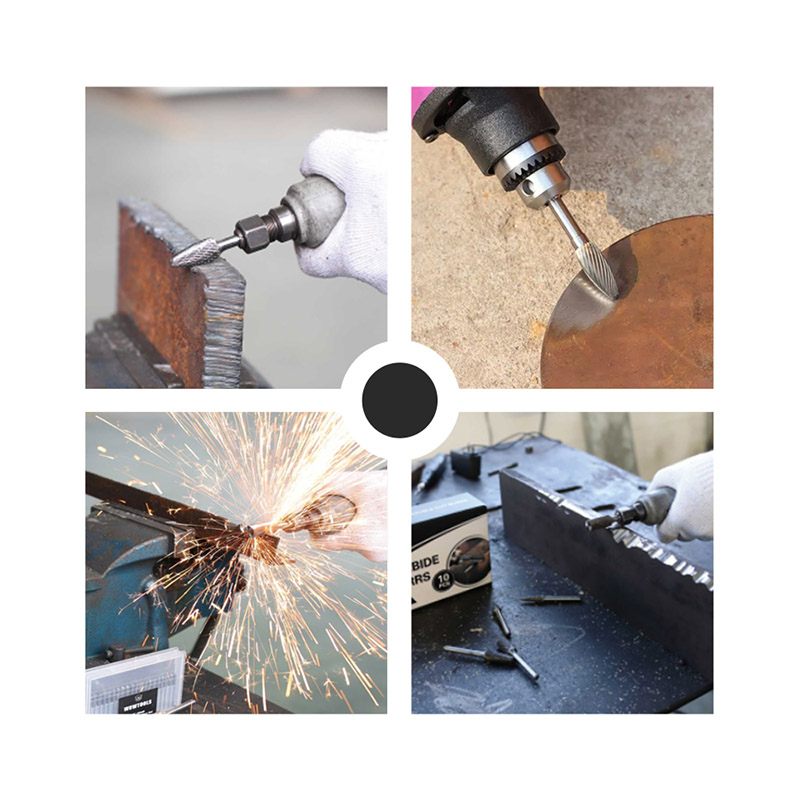

Multifunction

● Finish machiningvarious kinds of die cavities.

● Removing the burrs ofthe castings, forgings and the welding spatter on the weld assemblies.

● Chamfering angle,circular bead or flute on the mechanical components.

● Chamfering or burring the pipes.

● Polishing the impellerchannel.

● Grinding the hole toan accurate shape.



Application Tips

  • Always ensure your burr shank is well inserted into your collet andclamped down tightly.
  • Wear an eye mask to protect your eyes from filings Ensure the appropriate Air Tool is used and that it is regularly maintained.
  • Check that the bur is running true in the Air Tool before use.
  • Generally, the minimum grip depth is 2 / 3 of the length of the handle (not suitable for long handle rotary files).
  • Cutting speed should not exceed 35,000 RPM.
  • Use a smooth cutting action with constant movement.
  • Use light pressure, let the bur do the work.
  • Keep out reach of children.

Custom size description

  • All the products in stock are metric-sized products. For customers who require inch sizes, please contact us.
  • Non-standard sizes are available to produce as required sizes and drawing.

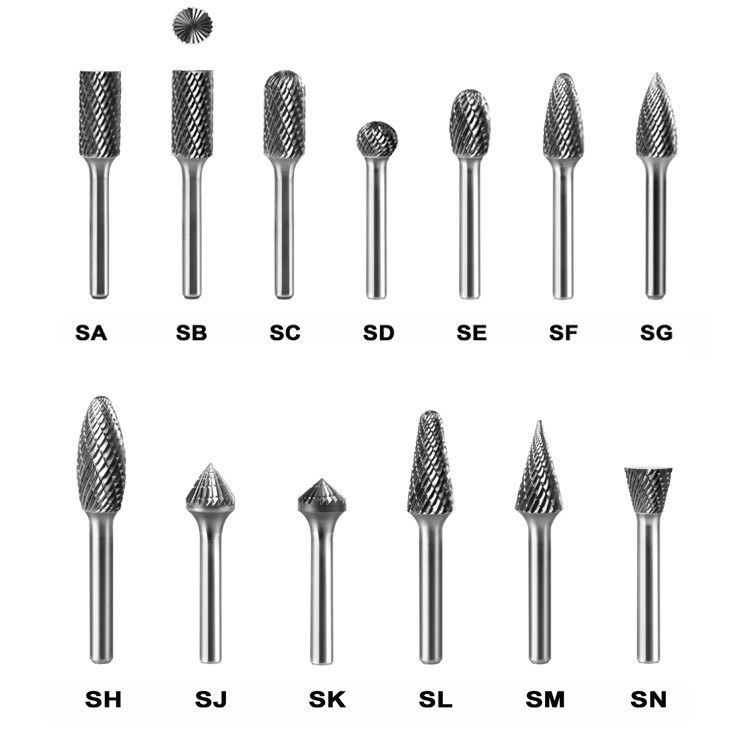

  • Please contact with us for more details about this product and other shapes of products.
