SK 90-degree 1/4" Tungsten Carbide Burr Rotary File Burr for Metal

Code: SK
Material: 100%Virgin Material Tungsten Carbide
Usage: Suitable for machining various kinds of metal material including ≤HRC65 hardened steel
Hardness: HRC50-60/HRA92.5
Application: Widely used for metalwork, tool making, engineering, model engineering, wood carving, jewellery making, welding, chamferring, casting, deburring, grinding, Tree Shape Radius End head porting and sculpting
Advantage: Durable,high hardness and impact toughness,efficient, long lasting.
Certification: ISO9001:2015
Customized support: OEM/ODM
Place Of Origin: Zhuzhou,Hunan,China
Request For Quotation
  • Description
  • Advantages
  • Shipping

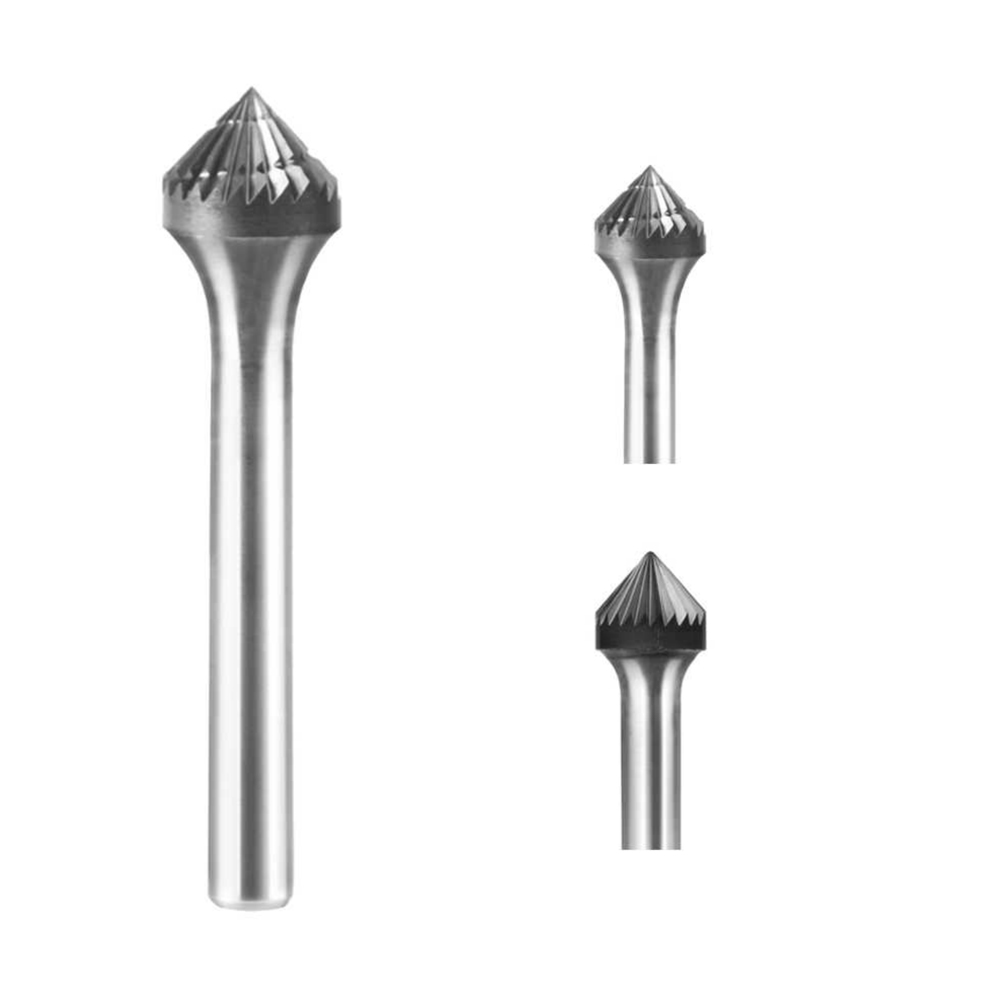

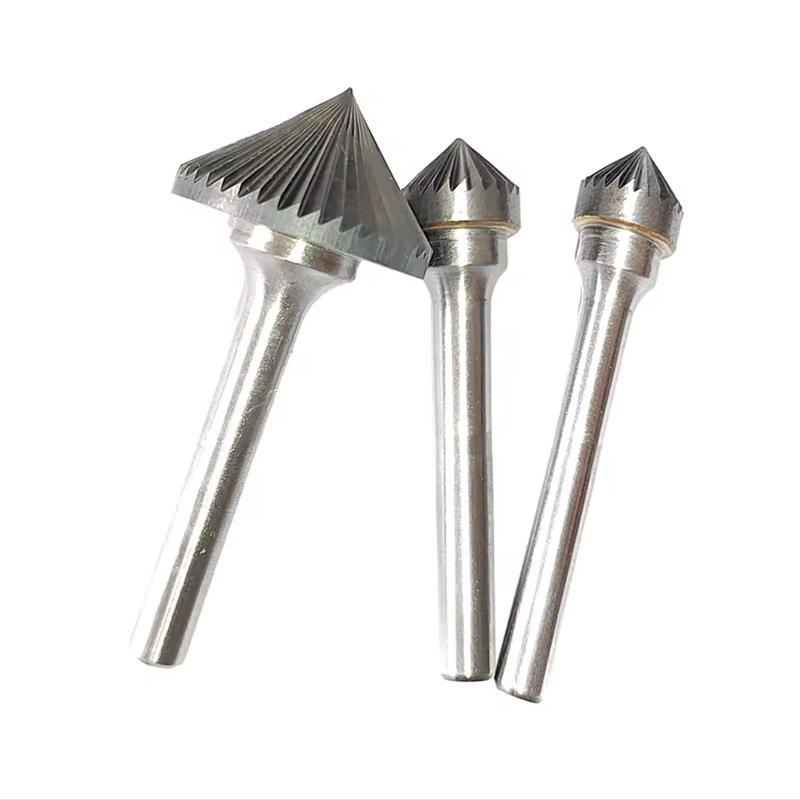

SK Carbide Burr/Rotary File 90 Degree Included Angle Double Cut for Die Grinder


About this item

  • Also called die grinder bits, rotary burrs and rotray files, these burrs are designed for cleaning out material in a wide-range of products including wood, plastics, stainless steel and other metals such as nickel, iron, steel, tool steel and titanium

  • Trade number SK-1 with a 90 Degree Double Cut shape

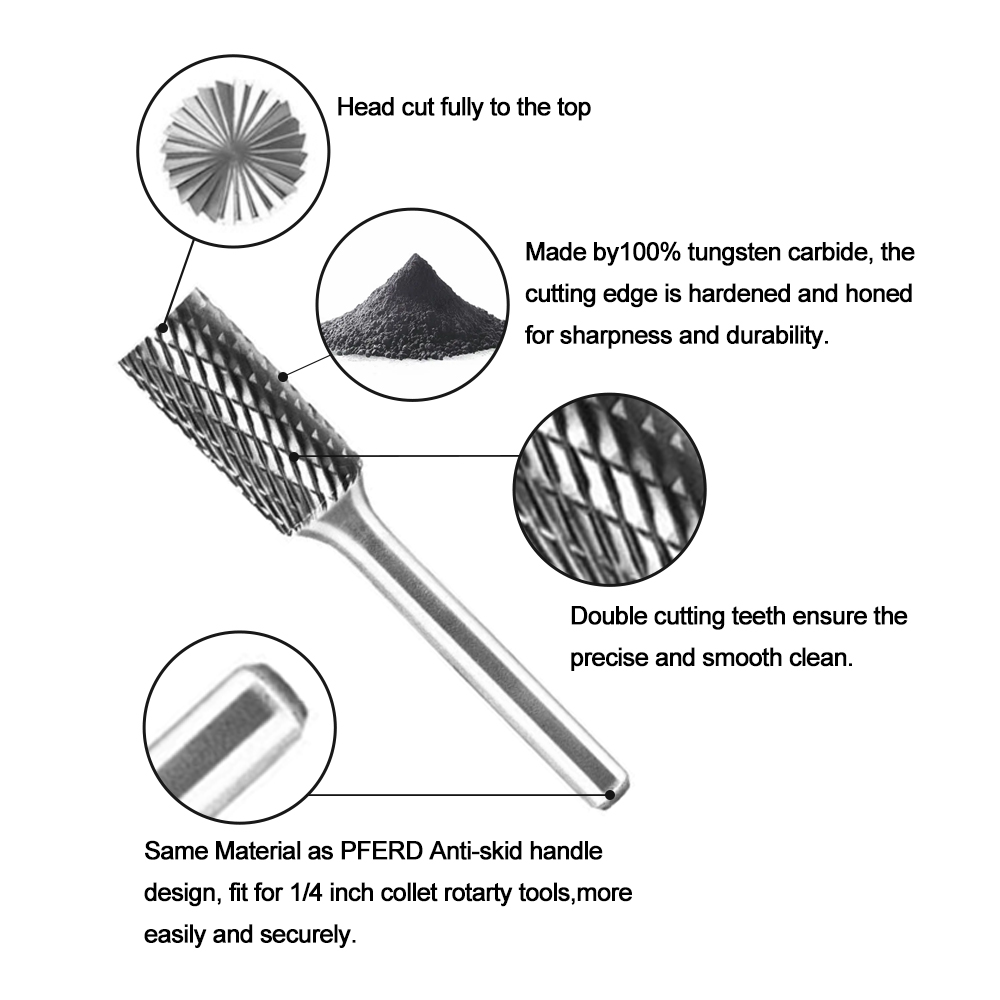

  • Double-cut style has rows of cutting teeth cut in two intersecting directions for fast material removal and a rougher finish

  • 1/4" Head Diameter with 1/8" Head Length and 2" Overall Length

  • 1/4" round shank allow use with a wide variety of toolholding systems




ModelCutter  Dia(mm)Cutter Length(mm)Shank DiaShank Length
SK-39.57.951/41-3/4
SK-512.79.531/41-3/4
SK-615.8812.291/41-3/4
SK-719.0513.891/41-3/4
SK-925.416.281/41-3/4

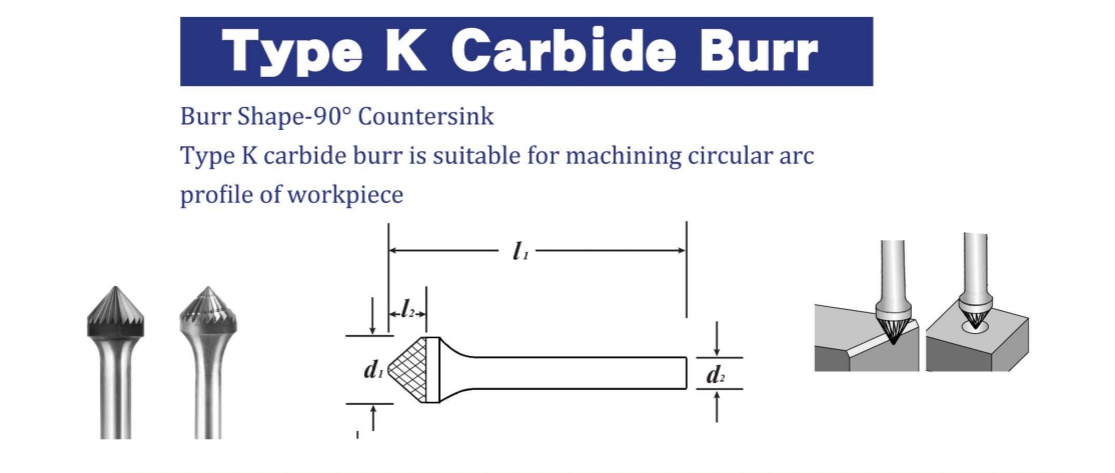

Item No.Cutter  DiaCutter LengthShank DiaOverall
K0605M066mm3mm6mm50mm
K0807M068mm4mm6mm52mm
K1008M0610mm5mm6mm53mm
K1210M0612mm6mm6mm54mm
K1412M0614mm7mm6mm57mm
K1612M0616mm8mm6mm57mm
K1913M0619mm9mm6mm58mm
K2014M0620mm10mm6mm59mm


Product Application

Tungsten carbide burrs are widely used in industrial sectors such as machinery, aviation, automobile, shipbuilding, chemical engineering, and process engraving. The main usage are as follows:

  • Fine processing of various metal molds, such as processing shoe molds, etc.
  • Used for various metal and non-metal process engraving, such as mold engraving, trimming of craft gifts
  • Clean the flash, burrs, welds of castings, forgings, weldments, such as machine-casting factories, shipbuilding factories, automobile factories, etc.
  • Used for chamfering rounding and groove processing of various mechanical parts, cleaning pipes, finishing the inner hole surface of mechanical parts, such as machinery factory, repair shop, etc.
  • Used for the repair of the impeller runner, such as the car engine factory.

Instructions for use

Carbide rotary burr is mainly used in power tools or pneumatic tools (also can be installed on machine tools), and the driving speed is generally 6000-50,000 rpm.The difference between double cutter and single cutter

  • Double cutter is more suitable for materials with lower density. For example, used on wood, plastic, aluminum and other materials. With crossed lines, the chip removal is fast, and it is easy to block in the grain gap during grinding and engraving, so the double cut is more suitable for the soft object.
  • The texture of the single-cutter determines that it is not suitable for processing softer materials. Because the single cutter cuts the soft material, the debris is easy to block the sipe, resulting in a shallower texture depth and a lower cutting capacity. Therefore, single cutter is more suitable for hard materials such as iron, copper and steel.

Custom size description

  • All the products in stock are metric-sized products. For customers who require inch sizes, please contact us.
  • Non-standard sizes are available to produce as required sizes and drawing.
  • Please contact with us for more details about this product and other shapes of products.
Packaging & Shipping
