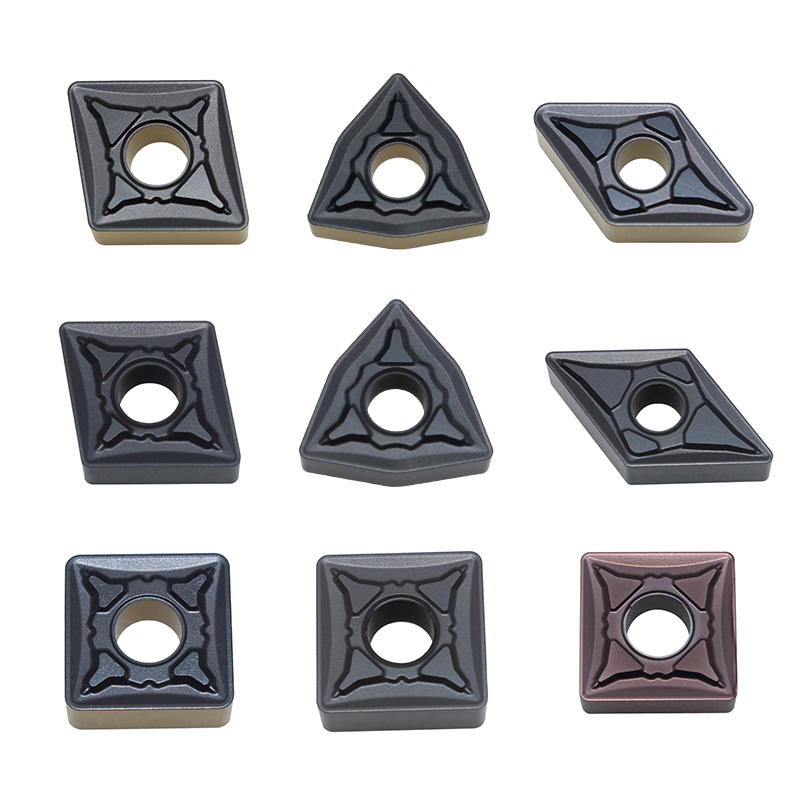

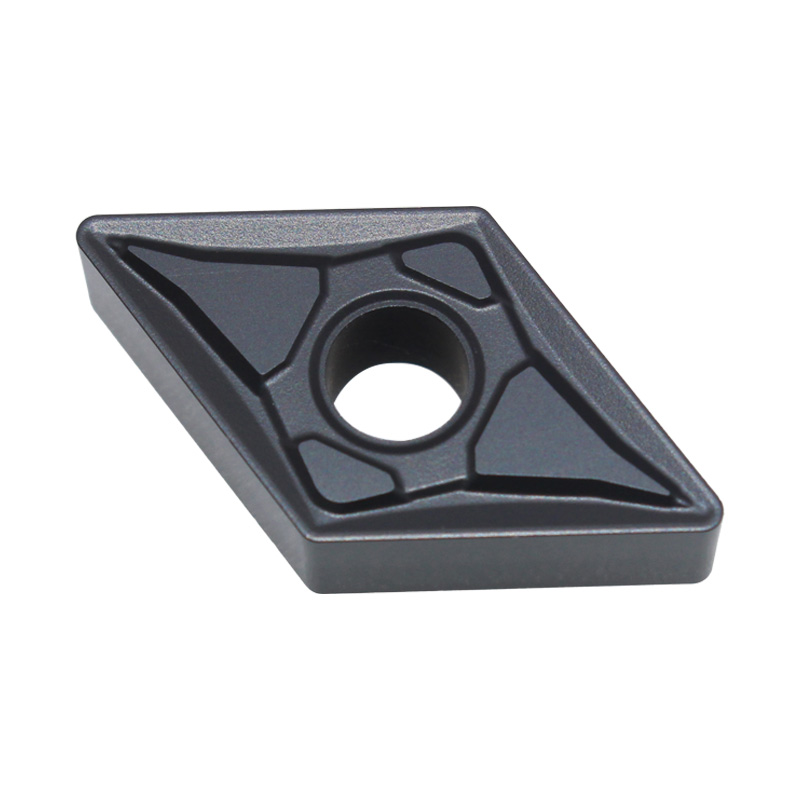

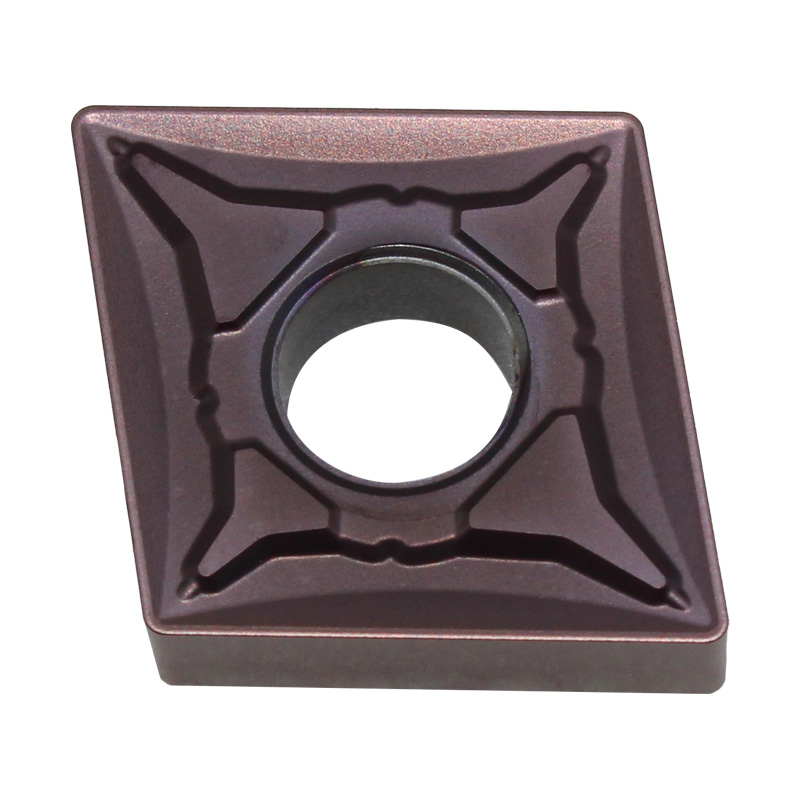

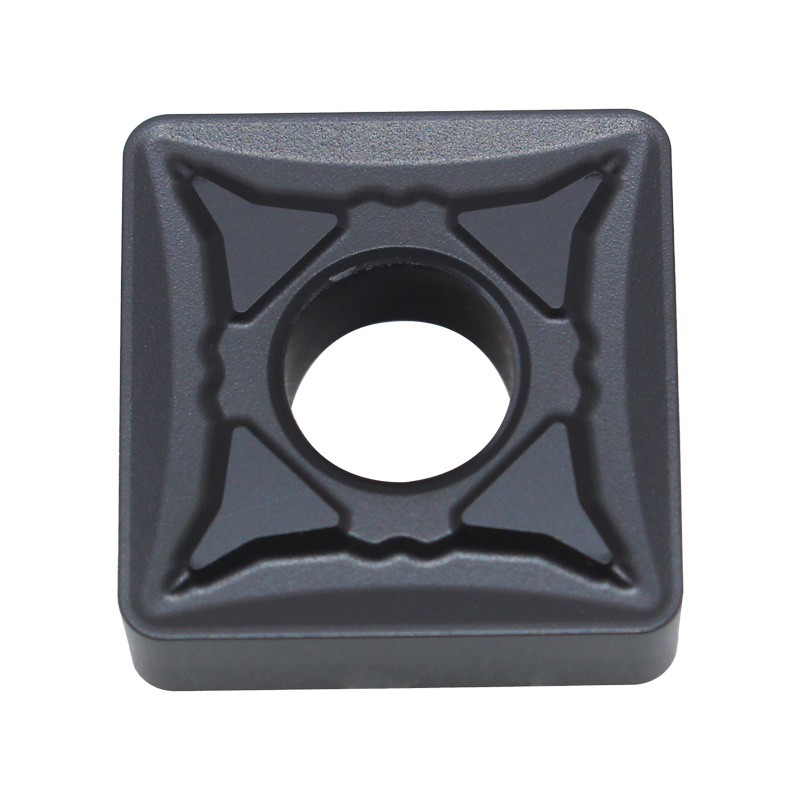

OKE CNMG WNMG DNMG SNMG Indexable Carbide Turning Insert - OPR series

Code: WNMG080408 OPR OC2125 CNMG160612 OPR OC2125 SNMG150612 OPR OC2125 DNMG150608 OPR OC2125
Material: 100%Virgin Material Tungsten Carbide
Usage: CVD for medium roughing and rough turning of steels, as well as stainless steels and cast iron.
Hardness: HRA92.5
Application: Suitable for roughing ISO P material
Coating: CVD
Advantage: good impact resistance
Certification: ISO9001:2015
Customized support: OEM/ODM
Place Of Origin: Zhuzhou,Hunan,China
Request For Quotation
  • Description
  • Advantages
  • Shipping

Description

CVD for medium roughing and rough turning of steels, as well as stainless steels and cast iron.
The updated OC2330 grades well at high cutting speeds, including on steels with increased hardness.

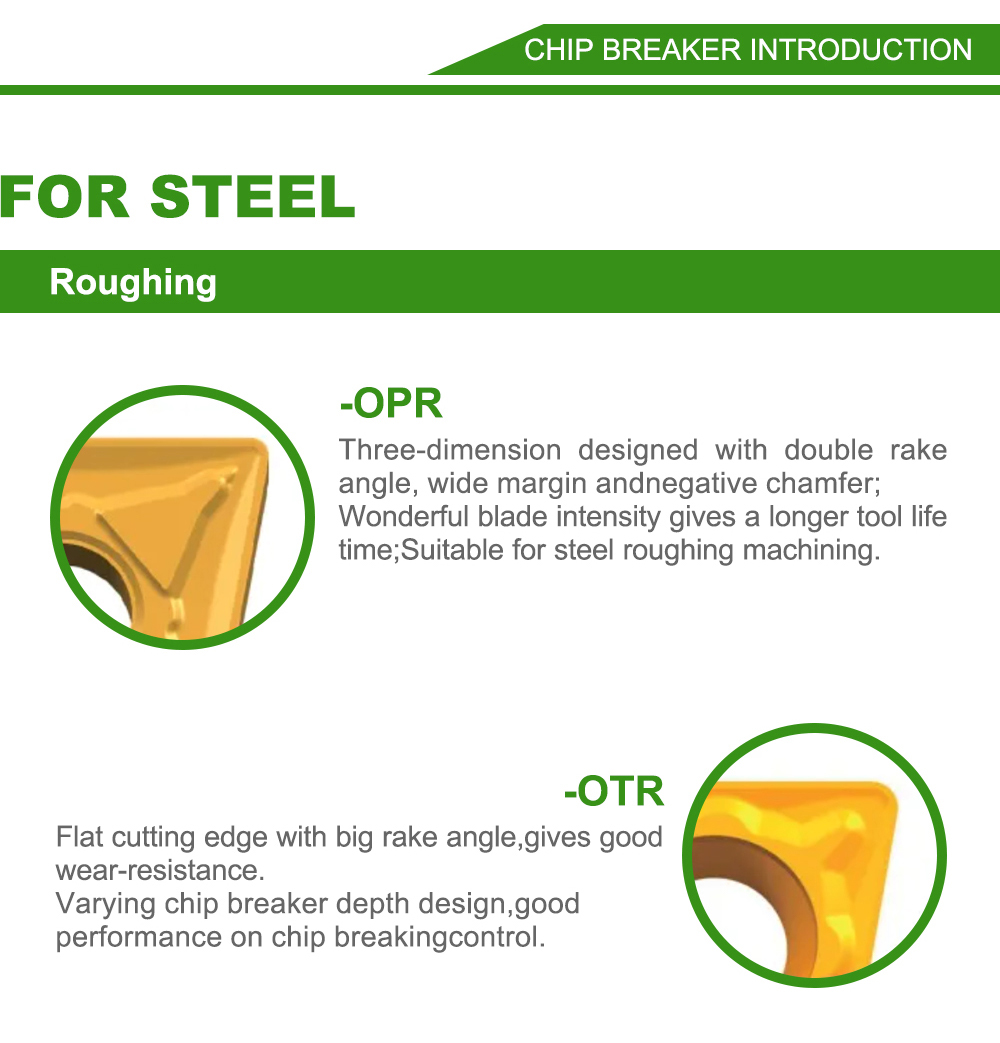

The preferred chip-breaker for rough machining of steel materials.

High-strength edge design with double rake angle chip-breaker ensures good impact resistance and a certain sharpness of the insert at the same time.

The best chip breaking range is Fn: 0.3-0.50mm/r;

 The primary application is rough machining of steel materials and intermittent machining of medium strength.


Additional information

PMK

P30

Grade

OC2330S

Chipbreaker

OPR

Chipbreaker Description

Suitable for roughing ISO P material

Brand

OKE

图层 3.2.jpg

图层 7.jpg







The carbide inserts is one type of well commented carbide turning inserts which be popular among our customers all over the world.

1. 100% original carbide powder and excellent wear resistance and toughness;
2. High performance of CVD/PVD coating, with super hard and smooth surface;
3. ISO9001:2015 quality system control;
4. Professional chip-breaker design and provides perfect cutting performance;
5. Precise dimension, high accuracy;
6.Super long and consistent tool lifespan;
7. Customized insert design, coating, marking, packing are available.




Advantages:
1.100% factory price and good quality
2.High stability, high performance,longer service life
3.Have in stock, fast delivery

Feature:
1.Excellent wear resistance and breakage resistance
2.Professional inspection and high precision
3.High precision, easy replacement, general use
