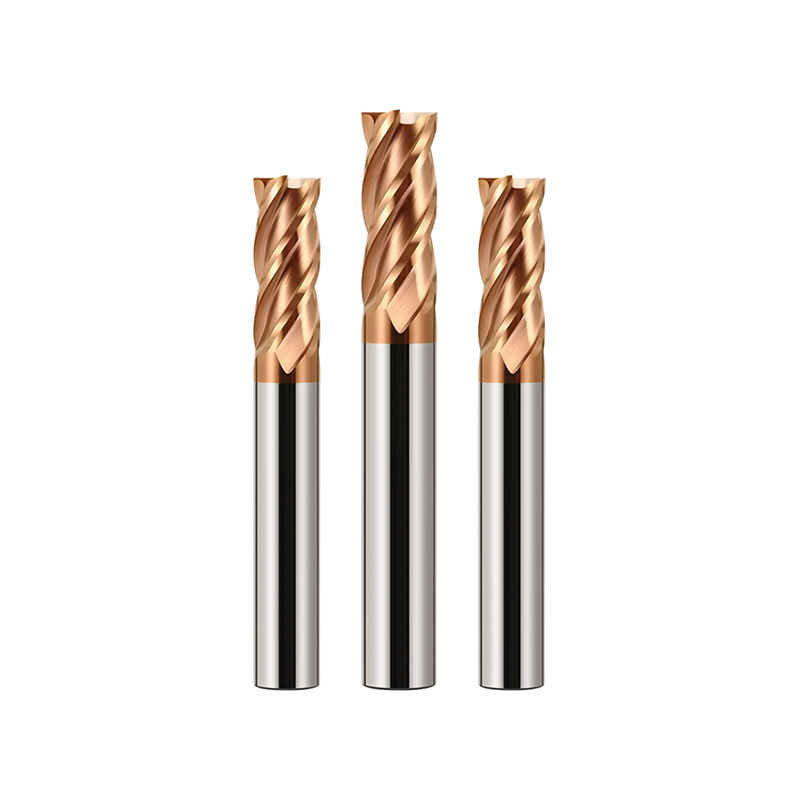

HRC55 2/4 Flute Solid Carbide Flat End Mill

Code: HRC55 F
Material: using grain-sized carbon tungsten as the raw material
Usage: Widely used in the processing of high-hardness materials, such as copper, cast iron, carbon steel, and mould steel etc.
Hardness: HRC55
Application: Milling machining
Coating: AlTiN, TiAlN, TiSiN, TiN
Advantage: High toughness, high hardness and excellent wear resistance
Certification: ISO9001:2015
Customized support: OEM/ODM
Place Of Origin: Zhuzhou,Hunan,China
Request For Quotation
  • Description
  • Advantages
  • Shipping

Product description


Using sub-fine grain tungsten carbide steel as base material, these carbide end mills has high hardness and excellent wear resistance. Enhanced by the latest coating, our solid carbide end mills is suitable for steel, mould steel, cast iron materials below HRC45 HRC55. Square carbide end mill, corner radius end mill and ball nose end mill for your choose.   Square carbide end mill, corner radius end mill and ball nose end mill for your choose.


1. Product Name: HRC55 2/4 Flute Solid Carbide Flat End Mill

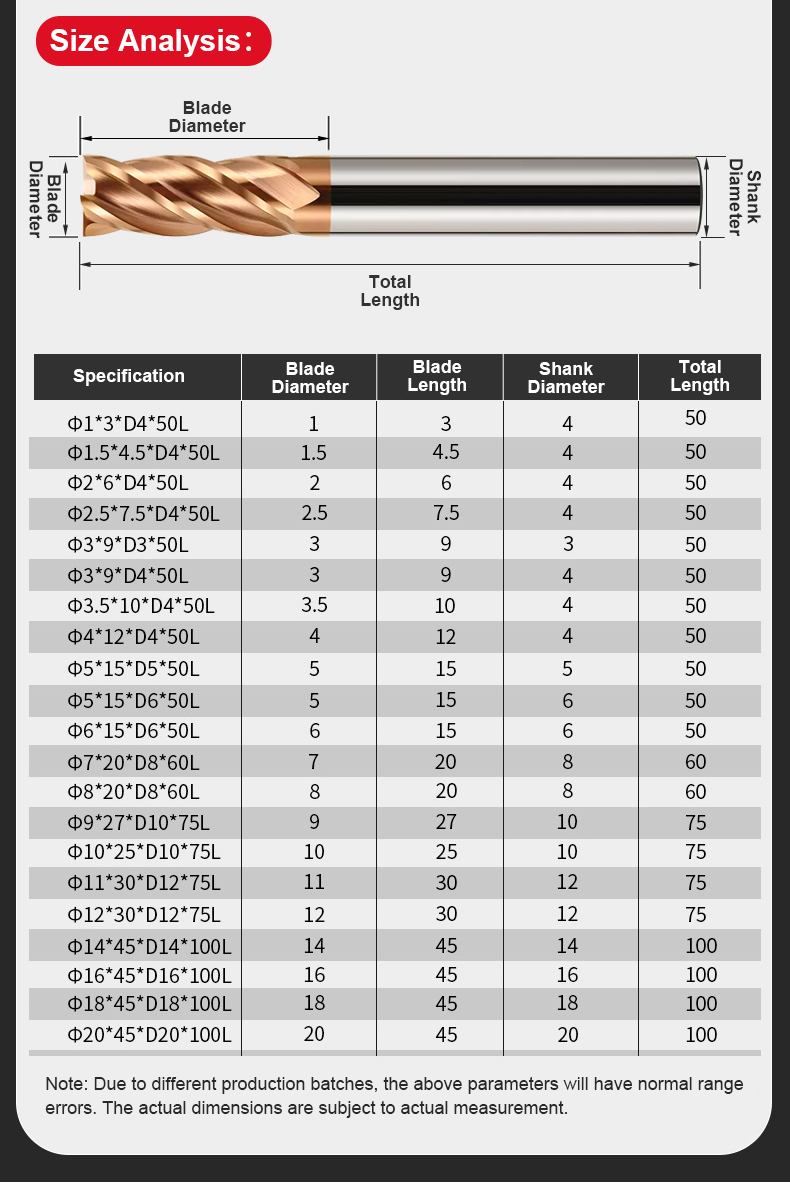

2. Standard size: 4mm,6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm
3. Advantages: High Precision,Good Surface & Performace
4. Certification: ISO9001:2008 , Supplier Assessment Certificate








HRC: HRC45 HRC55 HRC58 HRC60 HRC65

Coated: AlTiN, TiAlN, TiSiN, TiN, DLC,Nano, Diamond



1.Widely used in the processing of high-hardness materials, such as copper, cast iron, carbon steel, and mould steel etc.
2.Recommend to select the size with minimum overhang required as long overhang is vulnerable to vibration, and thus need to reduce RPM and the feed volume
3.Need to adjust RPM and feed rate reasonably accoring to cutting depth, the machine rigidity and other conditions of usage
4.With highly heat-resistant ALTIN coating, can be used for high-speed processing
5.High toughness, using grain-sized carbon tungsten as the raw material
6.Help to increase the smoothness, reduce the friction coefficient,and improve the lathe efficiency, thus save more production time
