| Code: | Carbide Needle Holder Tips4 |
|---|---|
| Material: | Tungsten Carbide / Cemented Carbide |
| Usage: | Used on Surgical Needle Holders / Medical Forceps Gripping Jaws |
| Hardness: | HRA 89 - 92 |
| Application: | Surgical Instruments / Medical Instruments Manufacturing / Maintenance |
| Advantage: | High Hardness, Non-slip Pyramid Teeth, Excellent Wear Resistance, Long Service Life |
| Certification: | ISO9001:2015 |
| Customized support: | OEM/ODM |
| Place Of Origin: | Zhuzhou,Hunan,China |

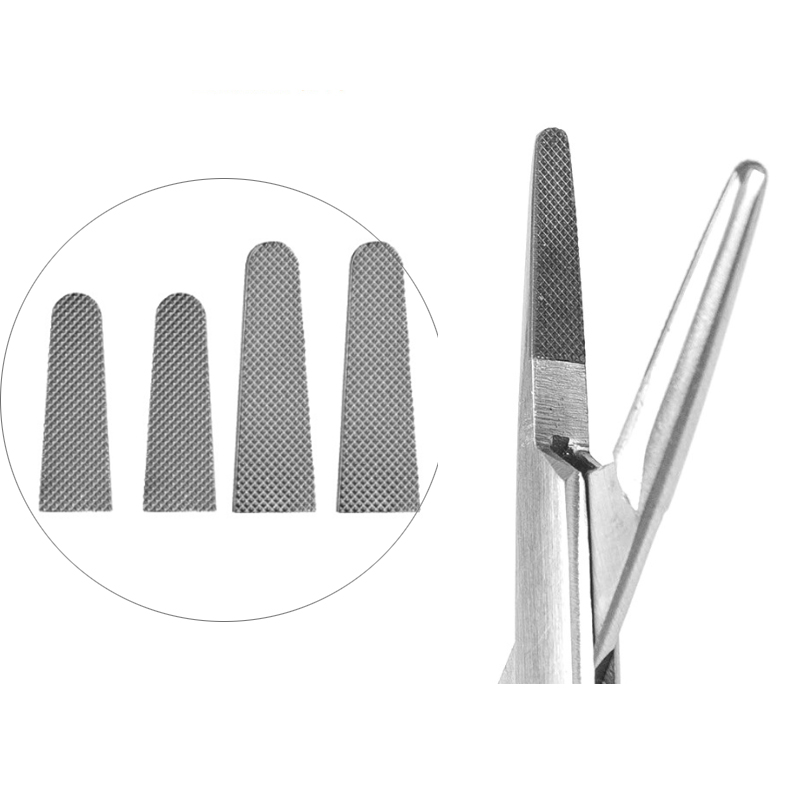

Upgrade or repair your surgical instruments with our premium-grade Tungsten Carbide (TC) Needle Holder Inserts. Engineered specifically for medical forceps and needle holders, these jaw plates provide an exceptional gripping surface that ensures maximum security and precision during suturing procedures.
Manufactured from high-density cemented carbide, our tips offer unparalleled wear resistance and a significantly extended lifespan compared to standard stainless steel alternatives.

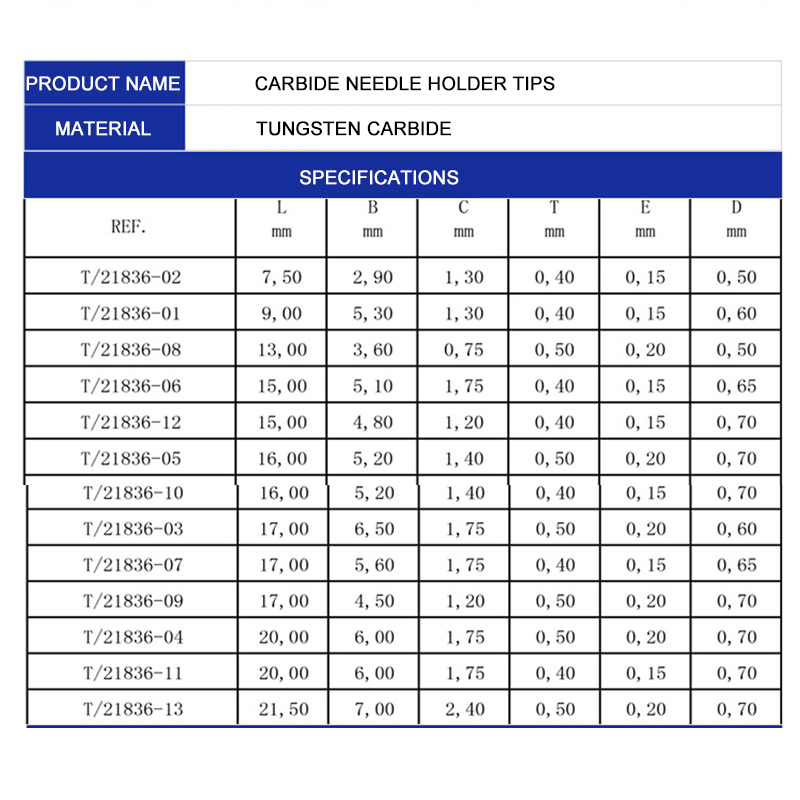

| Parameter | Specification Details |
| Material | Premium Cemented Carbide (WC+Co) |
| Coating | Uncoated / Bright Polished |
| Hardness | HRA 89 - 92 |
| Popular Lengths (L) | 15.00 mm / 17.00 mm / 20.00 mm (Full range from 7.5mm to 21.5mm) |
| Tooth Pitch (T/E) | 0.40 mm / 0.50 mm (Pyramid Teeth / Cross Grid) |
| Thickness (D) | 0.50 mm / 0.60 mm / 0.65 mm / 0.70 mm |
| Application | Manufacturing and repairing of T/C Surgical Needle Holders, Medical Forceps, and Jaws Grippers |

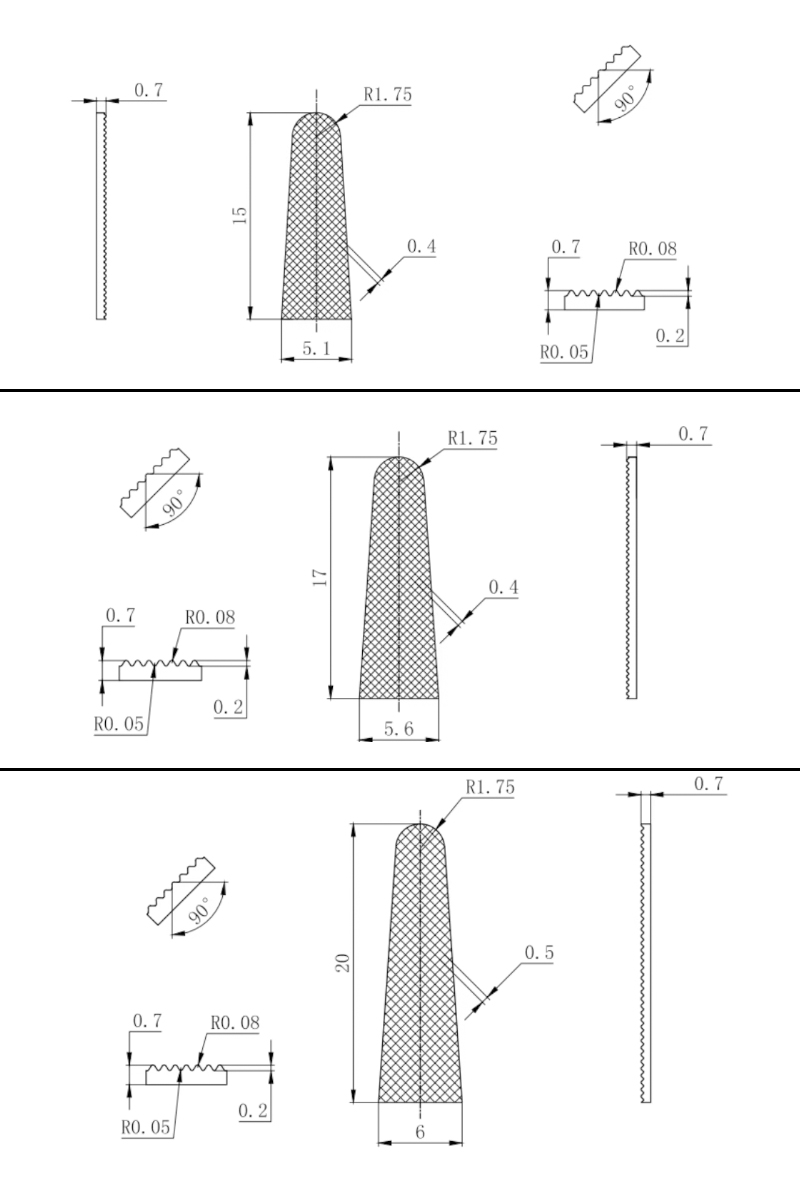

15mm Series: T/21836-06 (15.00*5.10 *0.40 mm), T/21836-12 ($15.00*4.80*0.40mm)

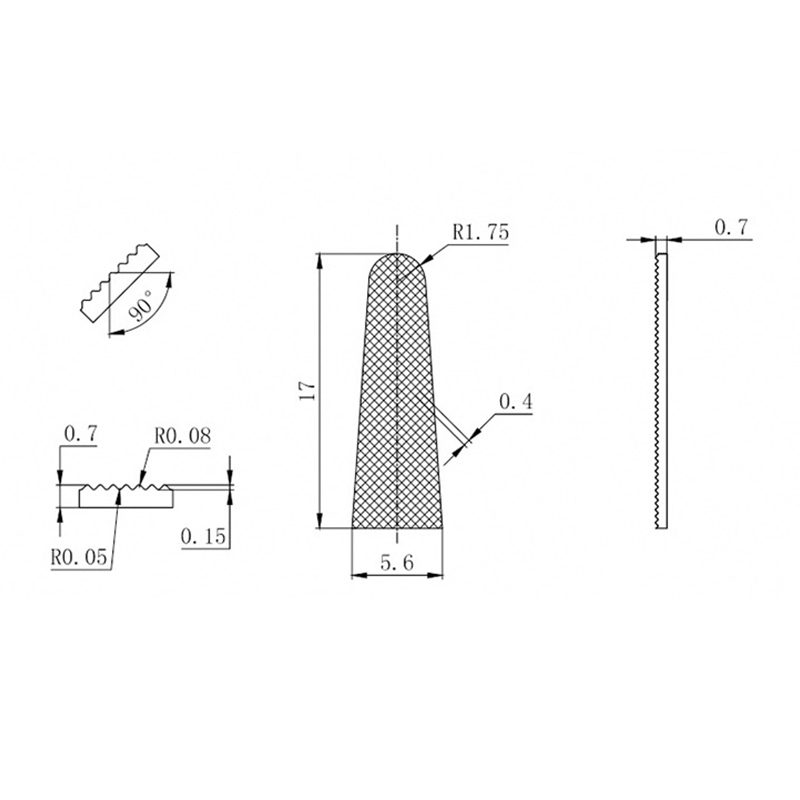

17mm Series: T/21836-03 (17.00*6.50*0.50mm), T/21836-07 (17.00*5.60*0.40*mm), T/21836-09 (17.00*4.50*0.50*mm)
20mm Series: T/21836-04 (20.00*6.00*0.50*mm), T/21836-11 (20.00*6.00*0.40*mm)
Custom sizes and dimensions are available upon request based on your technical drawings.
Stable Quality Control: Advanced sintering technology ensures consistent density and geometry across every batch.
OEM/ODM Capabilities: We support custom manufacturing based on your specific requirements, drawings, or samples.
Fast Delivery & Reliable Logistics: Strong production capacity ensures quick turnaround times for international bulk orders.
Premium Tungsten Carbide Material: Made of 100% virgin tungsten carbide with high hardness (HRA 89–92) for extreme durability.
Non-Slip Pyramid Teeth Design: Features a precision-engineered cross-grid/pyramid serrated surface (available in 0.4mm and 0.5mm pitches) to securely grip surgical needles without slipping or causing damage.
Corrosion & Sterilization Resistant: Fully capable of withstanding repeated autoclave sterilization and harsh medical environments.
Perfect Match for Popular Models: Specially optimized in the most demanded lengths—15mm, 17mm, and 20mm—to fit standard medical forceps.
